Same as our best-selling One-Bath Type CLOVA, HEARVY is a compact and low-cost model which adopts CLEANVY’s technology and experience.

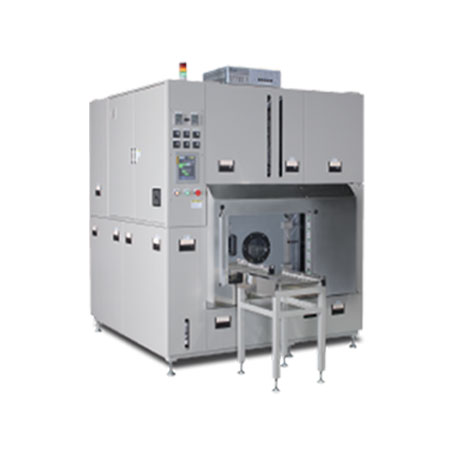

HEARVY

Same as our best-selling One-Bath Type CLOVA, HEARVY is a compact and low-cost model which adopts CLEANVY’s technology and experience.

Washable

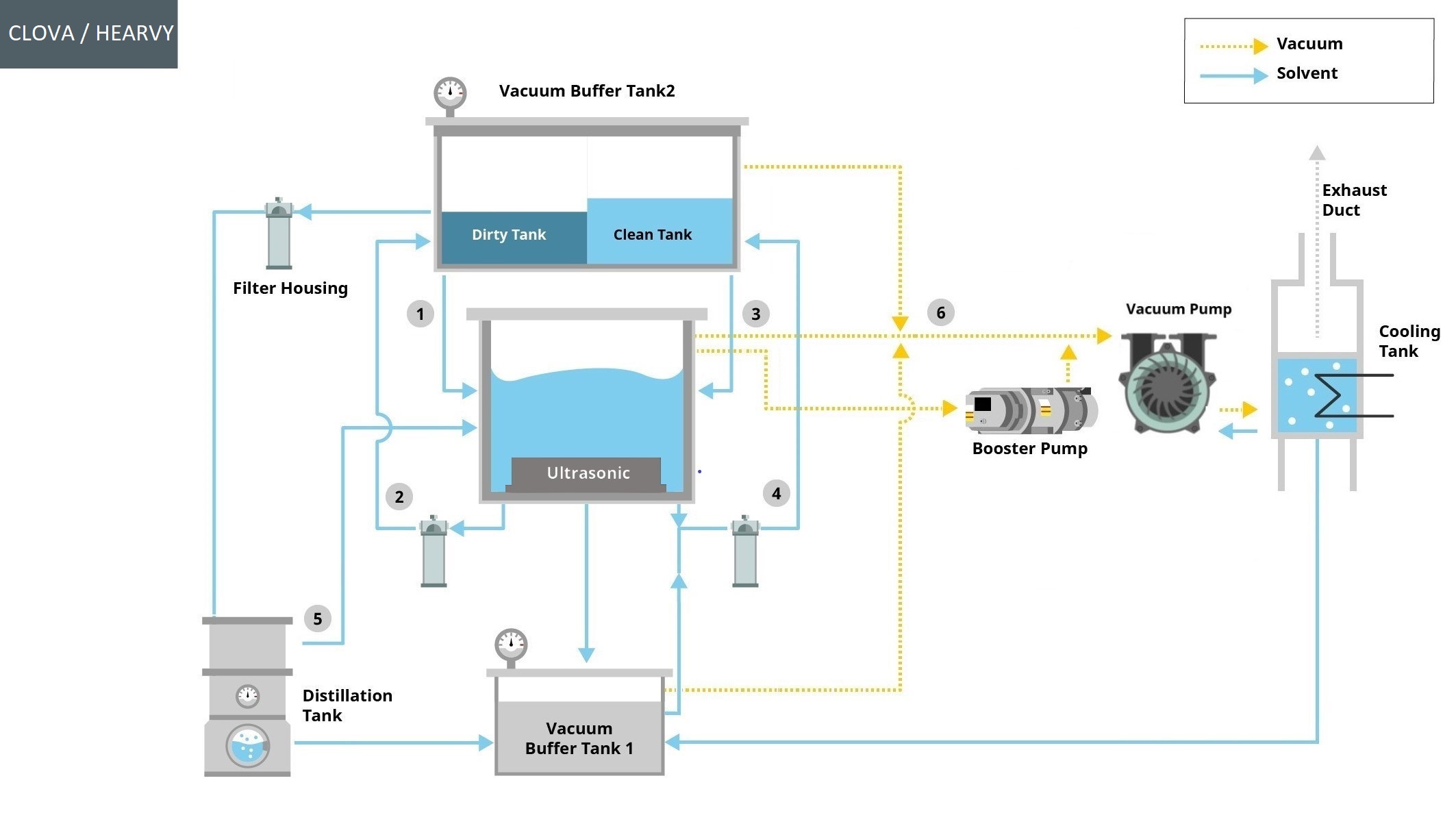

• The process is fully automated

1st process:  rough vacuum ultrasonic washing
2nd process: finish vacuum ultrasonic washing
3rd process: vapor washing
4th process: vacuum drying

• Since the solvent does not touch the atmosphere at all, the solvent can be warmed, and cleaning performance is improved.
• Rough and finished vacuum ultrasonic cleaning is also effective for cleaning blind hole parts and pressed parts
• Distillers have higher distillation capacity than other companies and can be washed even with workpieces with a lot of oil

Dryness/Running Cost

• Unique vacuum drying system achieves high dryness and solvent recovery
• Low solvent consumption and significant reduction in running costs
• Vacuum pumps are maintenance-free, less faulty and more reliable than dry pumps
• Heat medium oil life is reduced by 6,000 hours (= 3 to 4 times that of other companies) Heat medium oil cost, replacement frequency and downtime reduced by 1/3 to 1/4

Safety

• 4 processes of this machine type are carried out under vacuum. systems with low oxygen levels and extremely high safety

Standard specifications

Lineup	HEARVY-3040	HEARVY-4030R	HEARVY-6040R
Basket size - Square: WxDxH (mm) - Rotation: φxL (mm)	300x400x200	400x300x200 270x360	600x400x300 370x560
Ultrasonic	25kHz 1000W	25kHz 1000W	25kHz 2000W
Vacuum pump	3.7kW	3.7kW	5.5kW
Booster pump	0.4kW	0.4kW	1.5kW
Distillation Unit	100L/h	100L/h	200L/h
Holdings of solvent	300L	300L	795L
Holdings of heating oil	30L	30L	45L
Machine dimesions WxDxH (mm)	1700x1800x2020	1700x1800x2020	2200x2380x2200
Machine weight	1600kg	1600kg	4000kg

* Ultrasonic can be changed to 40kHz
* Option:
Rotation function / Rotation basket
CO2 fire distinguisher
Basket Transfer unit
